INDUCTORS AND SWITCHING TRANSFORMERS ON
RM CORES
 |
 |

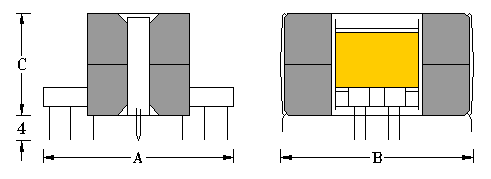

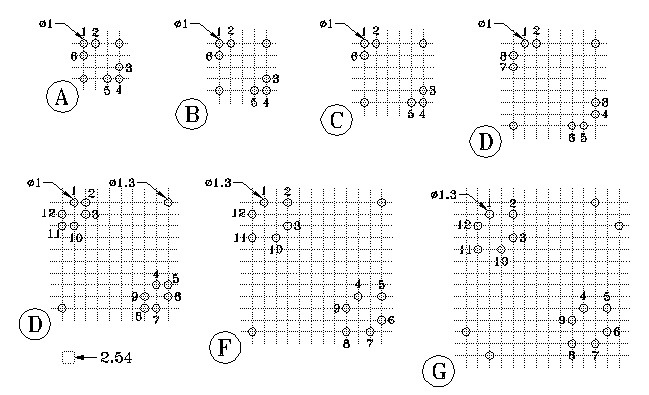

| ITEM | TYPE | A (mm) | B (mm) | C (mm) | HOLE ARRANGEMENT |
| 690 | RM4 | 12.0 | 12.5 | 10.0 | A |
| 691 | RM5 | 16.0 | 16.0 | 10.0 | B |
| 692 | RM6 | 20.0 | 19.0 | 12.0 | C |
| 693 | RM8 | 25.0 | 25.0 | 17.0 | D |
| 694 | RM10 | 28.0 | 30.0 | 19.0 | E |
| 695 | RM12 | 38.0 | 39.0 | 24.0 | F |
| 696 | RM14 | 41.0 | 44.0 | 30.0 | G |
