POWER TRANSFORMERS FOR
PCB 0,4-12VA
 |

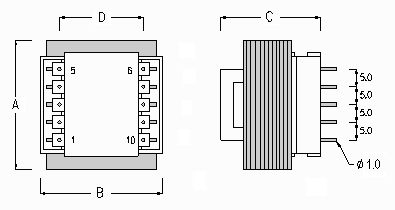

| ITEM | POWER (VA) | A (mm) | B (mm) | D (mm) | C (mm) | N° PINS |
| 160 | 0.4 | 25.5 | 30.5 | 20.0 | 14.0 | 10 |
| 161 | 0.8 | 25.5 | 30.5 | 20.0 | 20.0 | 10 |
| 162 | 1.1 | 25.5 | 30.5 | 20.0 | 22.0 | 10 |
| 163 | 1.5 | 25.5 | 30.5 | 20.0 | 25.0 | 10 |
| 164 | 1.8 | 25.5 | 30.5 | 20.0 | 28.0 | 10 |
| 170 | 1.0 | 27.5 | 33.5 | 20.0 | 26.0 | 10 |
| 171 | 1.5 | 27.5 | 33.5 | 20.0 | 31.0 | 10 |
| 172 | 2.0 | 27.5 | 33.5 | 20.0 | 34.0 | 10 |
| 180 | 2.5 | 34.5 | 40.5 | 25.0 | 29.0 | 10 |
| 181 | 3.5 | 34.5 | 40.5 | 27.5 | 31.5 | 12 |
| 182 | 5.0 | 34.5 | 40.5 | 27.5 | 36.0 | 12 |
| 190 | 3.5 | 34.5 | 40.5 | 25.0 | 30.0 | 12 |
| 200 | 6.0 | 40.5 | 48.5 | 27.5 | 35.0 | 12 |
| 201 | 8.0 | 40.5 | 48.5 | 27.5 | 39.0 | 12 |
| 202 | 10.0 | 40.5 | 48.5 | 27.5 | 43.0 | 12 |
 |

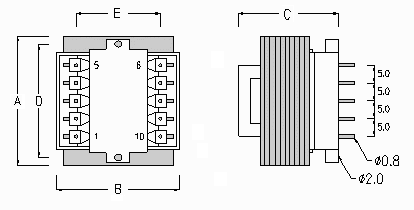

| ITEM | POWER (VA) | A (mm) | B (mm) | C (mm) | D (mm) | N° PINS |
| 195 | 8.0 | 45.0 | 54.0 | 40.0 | 41.0 | 14 |
| 196 | 10.0 | 45.0 | 54.0 | 42.0 | 41.0 | 14 |
| 197 | 12.0 | 45.0 | 54.0 | 45.0 | 41.0 | 14 |
VARIANTS ON REQUEST
