INDUCTORS AND SWITCHING TRANSFORMERS ON
POWER RM CORES
 |
 |

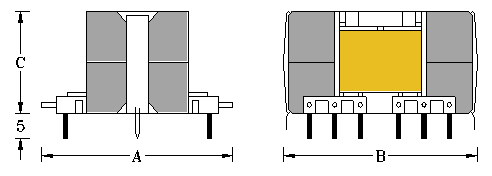

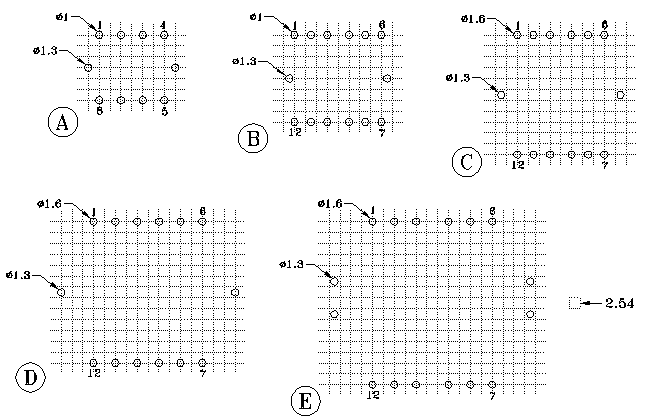

| ITEM | TYPE | A (mm) | B (mm) | C (mm) | HOLE ARRANGEMENT |
| 700 | RM6 | 20.0 | 19.0 | 12.5 | A |
| 701 | RM8 | 30.0 | 25.0 | 17.0 | B |
| 702 | RM10 | 40.0 | 31.0 | 19.0 | C |
| 703 | RM12 | 46.0 | 39.0 | 24.0 | D |
| 704 | RM14 | 51.0 | 44.0 | 30.0 | E |
