NORDELETTRONICA TRANSFORMERS 50Hz " POWER "

POWER TRANSFORMERS FOR
PCB 12-32VA

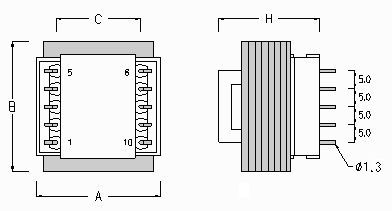

TRFSCH11.GIF - 11049



ITEM POWER (VA) A (mm) B (mm) C (mm) H(mm) N° PINS
205 12 50.0 60.0 32.5 42.0 14
206 17 50.0 60.0 32.5 47.0 14
207 22 50.0 60.0 32.5 52.0 14
208 30 50.0 60.0 32.5 57.0 14

VARIANTS ON REQUEST
