NORDELETTRONICA TRANSFORMERS 50Hz " CAPSULATED "

CAPSULATED TRANSFORMERS WITH
TERMINAL BLOCKS 3,5-22VA

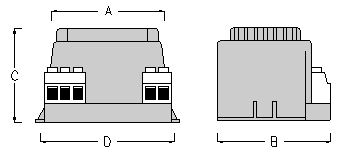

TRFSCH19.GIF - 2680

ITEM POWER (VA) A (mm) B (mm) C (mm) D (mm)
140 3.5 / 5 44.0 47.0 34.0 58.0

UNDER HOMOLOGATION - VDE/IMQ

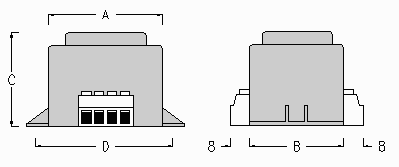

TRFSCH08.GIF - 2697

ITEM POWER (VA) A (mm) B (mm) C (mm) D (mm)
141 5.0 42.0 36.0 39.0 51.0
150 6.0 52.0 44.0 38.0 60.0
151 8.0 52.0 44.0 42.0 60.0
152 10.0 52.0 44.0 47.0 60.0
153 12.0 62.0 52.0 48.0 72.5 x 43.0
154 17.0 62.0 52.0 52.0 72.5 x 43.0
155 22.0 62.0 52.0 56.0 72.5 x 43.0

VARIANTS ON REQUEST

downolad PDF
