CAPSULATED TRANSFORMERS WITH
FIXING 30-60VA
 |

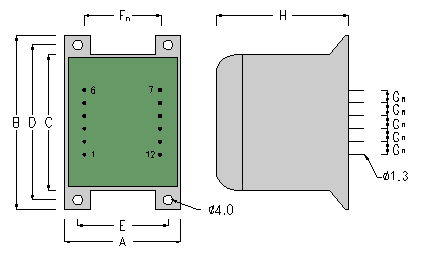

| ITEM | POWER(VA) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F1/F2(mm) | G1/G2(mm) | H(mm) | N° PINS |
| 130 | 30 | 68.0 | 101.0 | 81.0 | 90.5 | 56.5 | 39.0/36.0 | 7.5/8.0 | 59.0 | 12 |
| 131 | 40 | 68.0 | 101.0 | 81.0 | 90.5 | 56.5 | 39.0/36.0 | 7.5/8.0 | 65.0 | 12 |
| 132 | 60 | 68.0 | 101.0 | 81.0 | 90.5 | 56.5 | 39.0/36.0 | 7.5/8.0 | 75.0 | 12 |
 |

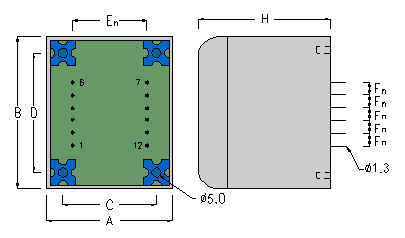

| ITEM | POWER(VA) | A(mm) | B(mm) | C(mm) | D(mm) | E1/E2(mm) | F1/F2(mm) | H(mm) | N° PINS |
| 110 | 30 | 68.0 | 82.0 | 49.5 | 62.5 | 39.0/36.0 | 7.5/8.0 | 59.0 | 12 |
| 111 | 40 | 68.0 | 82.0 | 49.5 | 62.5 | 39.0/36.0 | 7.5/8.0 | 65.0 | 12 |
| 112 | 60 | 68.0 | 82.0 | 49.5 | 62.5 | 39.0/36.0 | 7.5/8.0 | 75.0 | 12 |
VARIANTS ON REQUEST
