NORDELETTRONICA TRANSFORMERS 50Hz " CAPSULATED "

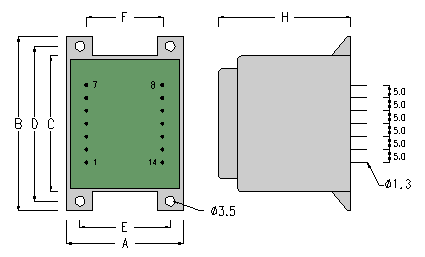

CAPSULATED TRANSFORMERS WITH
FIXING 12-35VA

TRFSCH03.GIF - 4618

ITEM POWER (VA) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) H (mm) N° PINS
120 12 54.0 82.0 64.0 72.5 43.0 32.5 46.0 14
121 17 54.0 82.0 64.0 72.5 43.0 32.5 51.0 14
122 22 54.0 82.0 64.0 72.5 43.0 32.5 60.0 14
125 18 60.0 87.0 70.0 78.0 48.0 35.0 57.0 16
126 25 60.0 87.0 70.0 78.0 48.0 35.0 60.0 16
127 30 60.0 87.0 70.0 78.0 48.0 35.0 64.0 16
128 35 60.0 87.0 70.0 78.0 48.0 35.0 70.0 16

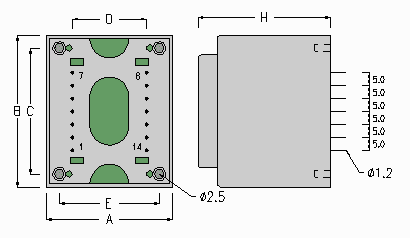

TRFSCH05.GIF - 4633

ITEM POWER (VA) A (mm) B (mm) C (mm) D (mm) E (mm) H (mm) N° PINS
135 18 54.0 64.0 53.0 32.5 40.0 55.0 14
136 22 54.0 64.0 53.0 32.5 40.0 55.0 14

VARIANTS ON REQUEST
