NORDELETTRONICA TRANSFORMERS 50Hz " CAPSULATED "

CAPSULATED TRANSFORMERS WITH
NO FIXING 0,4-3,5VA

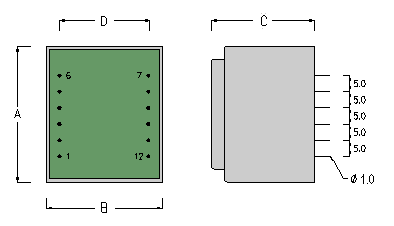

TRFSCH02.GIF - 3458

ITEM POWER (VA) B (mm) A (mm) D (mm) C (mm) N° PINS
040 0.4 28.0 33.0 20.0 15.25 10
041 0.8 28.0 33.0 20.0 22.25 10
042 1.1 28.0 33.0 20.0 24.25 10
043 1.5 28.0 33.0 20.0 27.25 10
044 1.8 28.0 33.0 20.0 31.0 10
050 1.0 31.0 37.0 20.0 26.35 10
051 1.5 31.0 37.0 20.0 31.0 10
052 2.0 31.0 37.0 20.0 35.5 10
060 2.5 38.0 44.0 25.0 32.0 10
061 3.5 38.0 44.0 27.5 34.0 12

VARIANTS ON REQUEST
